Low-beam headlight tester

  • Dual CMOS cameras, 1 MP resolution
  • Built-in image processing for beam shape analysis
  • Fresnel lens focusing measurement method
  • Touch screen and physical button interface
  • TFT LCD display
  • Dial-based menu selection and parameter setting
  • Counterweight mechanism for vertical adjustment
  • Real-time beam image capture and aiming
  • Measurement support for HID, LED, and Z-BEAM lamps
  • Automatic height detection sensor
  • Compact and robust housing
  • Stable base with smooth vertical movement

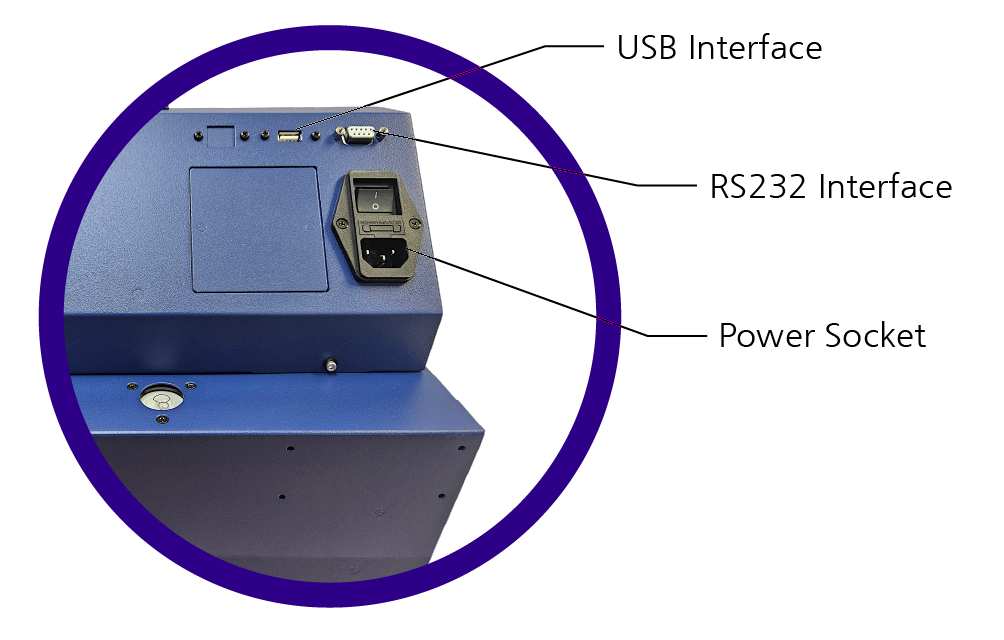

  • RS232 communication output


Measurement Items

- Low beam (dipped beam), High beam (driving beam)


Measurement Method

- CMOS camera, lens focusing method


Measurement Range / Resolution

- High Beam

   0~120,000 cd

   Vertical : 0~350mm/10m (0~2°)

   Horizontal (Left/Right) : 0~525mm/10m (0~2°)

- Low Beam

   0~40,000 cd

   Vertical tolerance : -3.50%~+3.50%


Spec โ–ถ KS200LT

Camera Resolution : 1 million pixels

Measurement Method : Camera imaging & lens ray method Measurement Distance : 1m

Power Supply : 100~240V 50/60Hz

Main Unit Size : 650(W)  530(D)  1678(H)

Sensor Unit Size : 310(W)  510(D)  350(H)

Weight Approx : 50kg

Communication : RS232

Printer : Built-in thermal printer (Optional)

Option : Internal printer

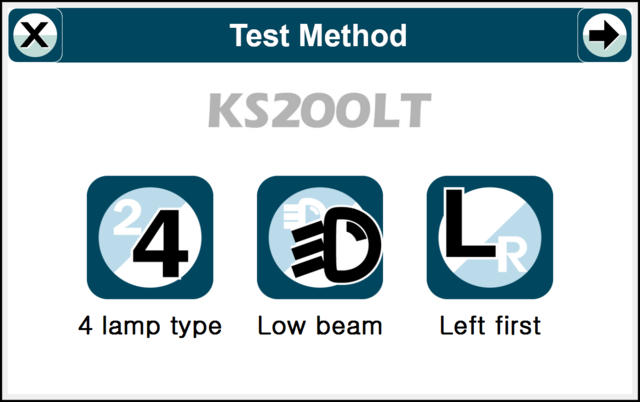

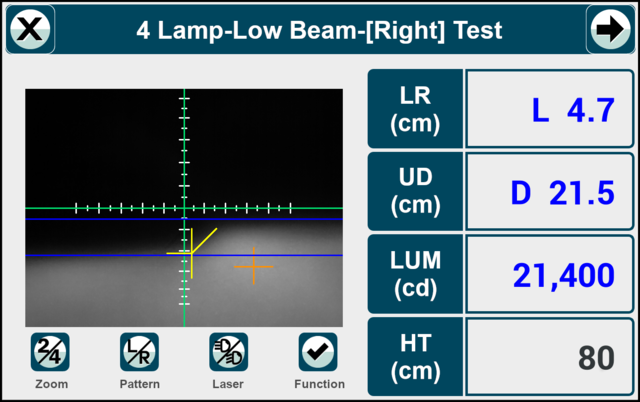

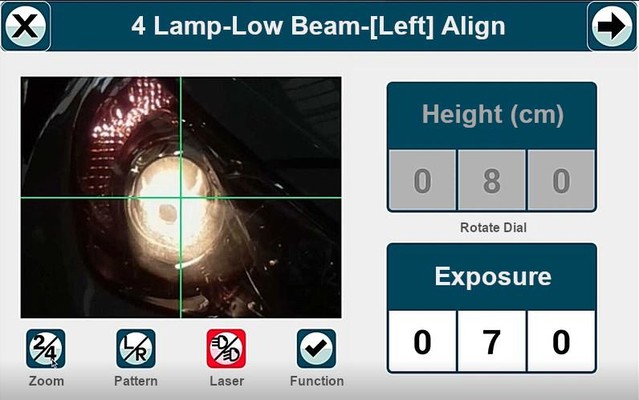

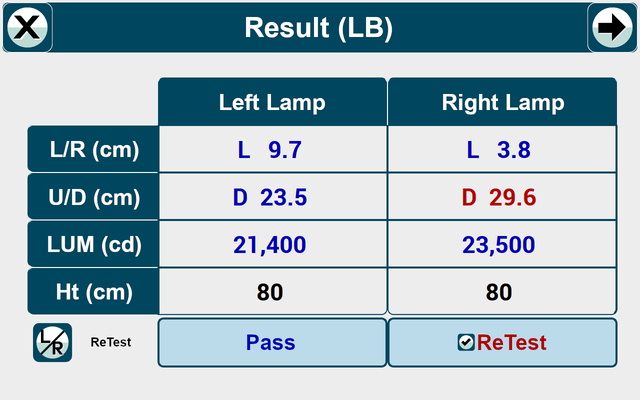

Display example
