KS200-DM / KS200-DM(B)

  • Partial flow opacimeter
  • Quickly discharge smoke from vehicles with dual fans (To prevent pollution of lenses)
  • Higher precision and longer life time
  • Light and compact design (Easy to move)
  • Free accelerator and peak hold function
  • Vehicle RPM, Oil Temperature Measurement (Option)
  • Remote controller allows operation for distant equipment (Option)
  • Built-in thermal printer (Option )
  • Add heater module can prevent lens pollution (Option)
  • KS200-DM(B)
    : Rechargeable lithium ion battery power
    (Can operated along 5 hours continuously)

Measurement Items

- Smoke opacity, smoke density, RPM, Oil Temperature

Measurement principle

- Partial flow opacimeter

Measuring range / Resolution function

- Opacity(N) : 0.0~100.0% / 0.1%

- Absorption Coefficient(K) : 0.00~21.42m-1 / 0.01m-1

- RPM : 0~8,000 rpm / 1 rpm

- Oil Temp. : 0~200℃ / 0.1℃

Measuring Unit : Green LED (565nm), Photodiode,

                               Optical length of 430mm

* Blue part is optional

Spec ▶ KS200-DM

Repeatability - under 1%

Response time - 0.5 sec(90%),

                           Bassel Low Pass Digital Filter

Preheating time - 3~6 minutes

Power - 100~120V 50/60Hz or 200~240V 50/60Hz

Size - 415(W) x 130(D) x 220(H)mm

Weight - About 6kg

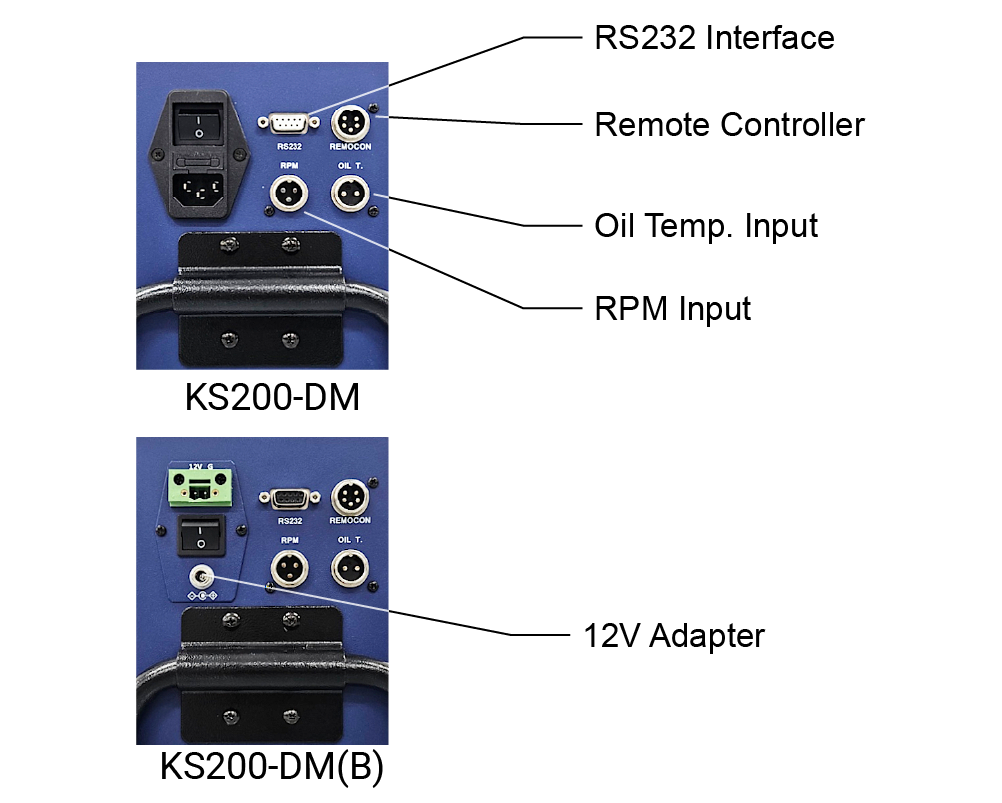

Output Method - RS232

Printer - Built-in thermal printer (Option)


Spec ▶ KS200-DM(B)

Please refer to the KS200-DM

Battery type - 12V rechargeable lithium ion

Charging Method - 12V Adapter

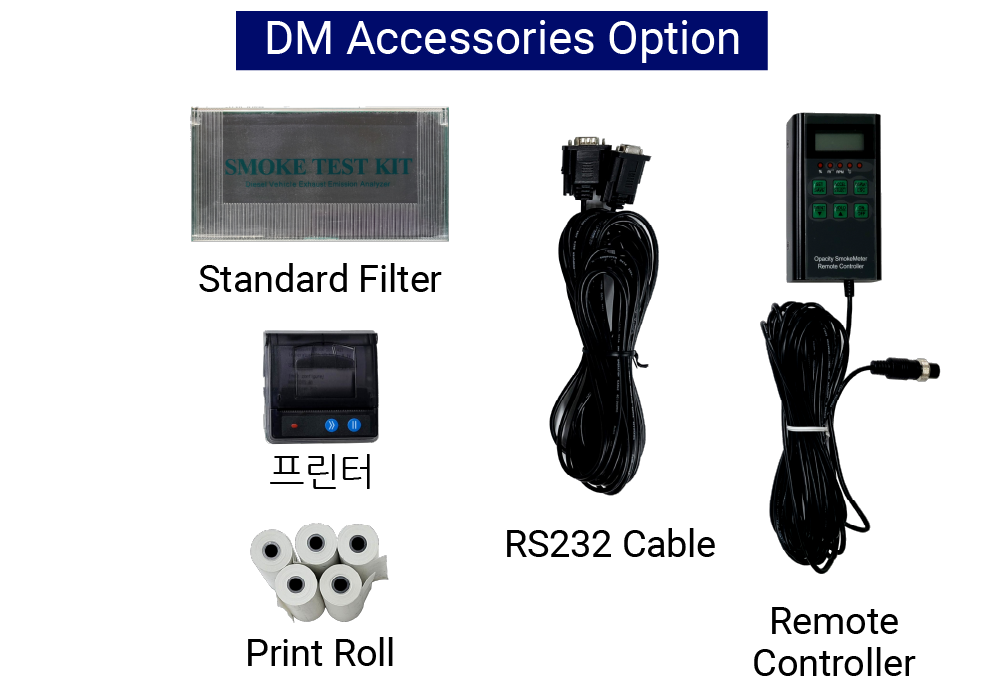

Option

  • Built in Printer
  • Remote Controller
  • RPM, Oil Temp Input

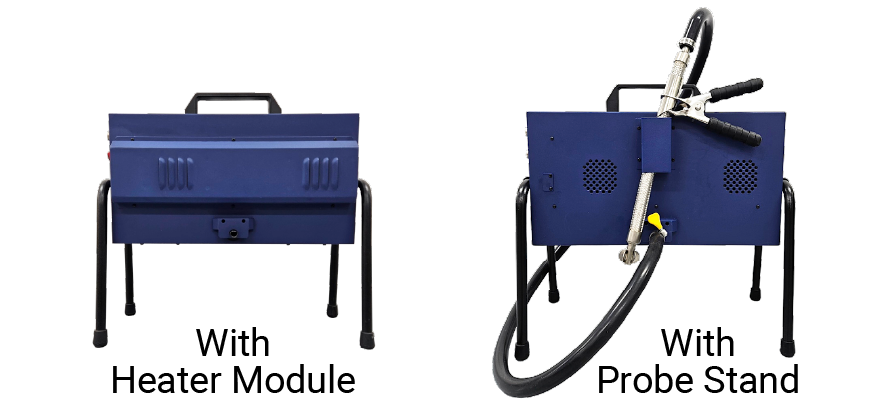

  • External Mounting Heater Module
