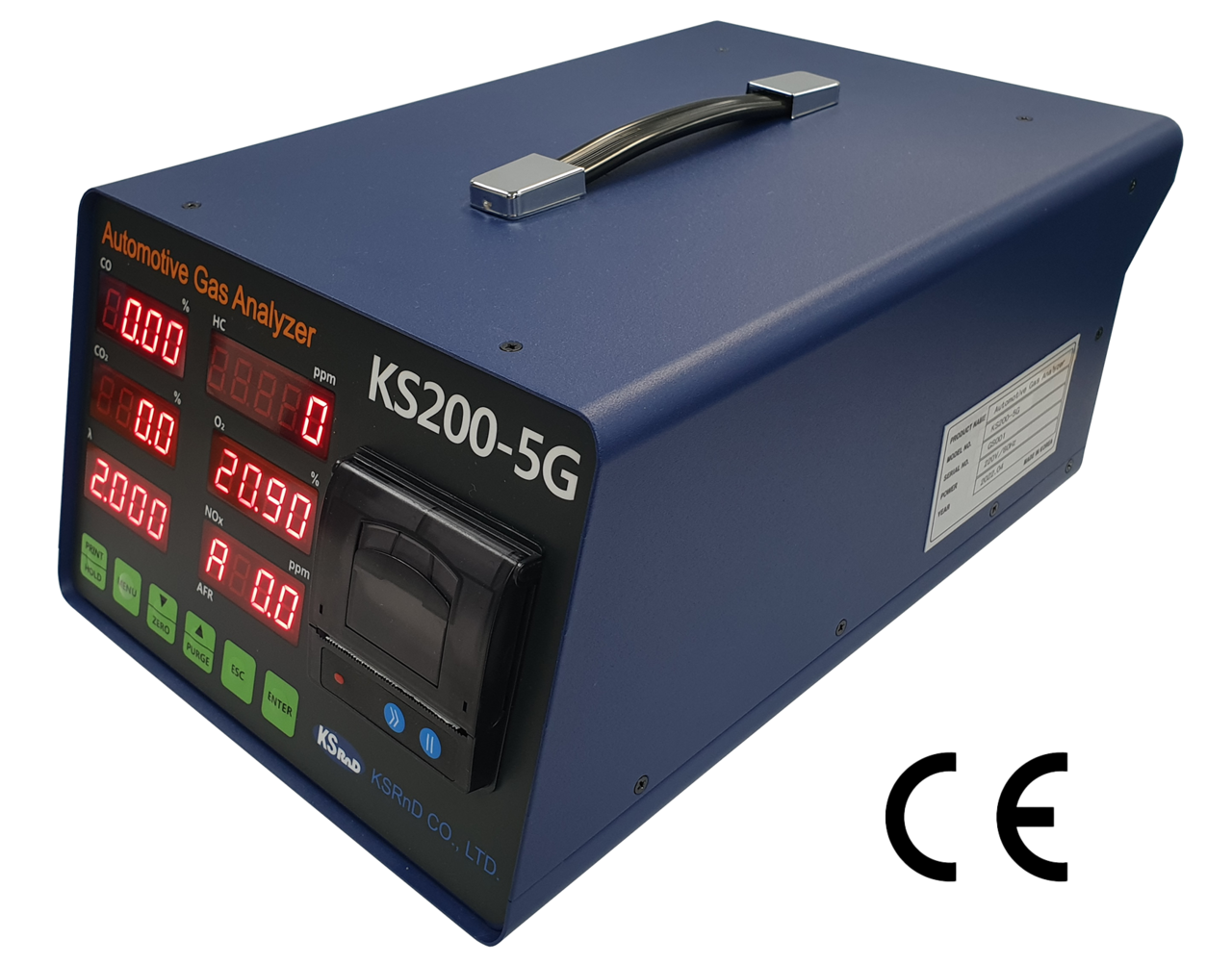

KS200-5G / KS200-5G(B)

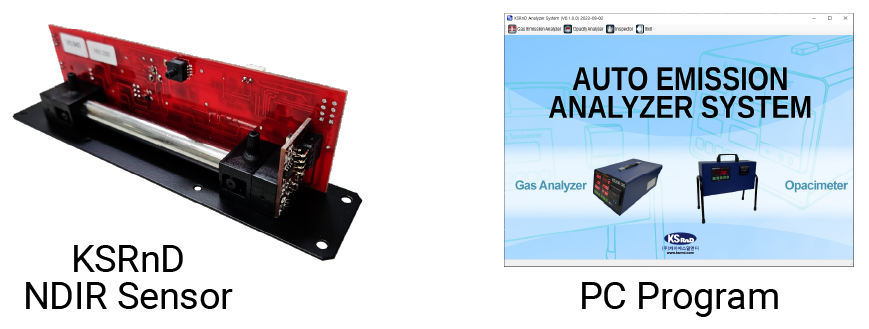

  • NDIR technology for reliable
  • Display Rambda(λ), AFR, NOx
  • Convenient key operating system
  • Built-In Printer(Optional) / PC Program
  • Display RPM / Oil temperature(Optional )
  • KS200-5G(B)
    :Rechargeable lithium ion battery power
    (Can operated along 5 hours continuously)

Measurement Items

- CO, HC, CO₂, O₂, NOx, Lambda(λ), AFR, RPM, Oil Temp.

  HC 0~15,000ppm
  CO Correction Function

Measurement principle

- CO, HC, CO₂ : Non-Dispersive Infrared(NDIR)

- O₂, NOx : Electrochemical

Measuring range / Resolution function

- CO : 9.99% / 0.01%

- HC : 9999ppm / 1ppm

- CO₂ : 20.0% / 0.1%

- O₂ : 25.00% / 0.01%

- λ : 2.000 / 0.001

- AFR : 99.0 / 0.1

- NOx : 5000ppm / 1ppm

* Blue part is optional

Spec ▶ KS200-5G

Repeatability - under 2% FS

Response time - Max 10 sec(over 90%)

Preheating time - 5~6 minutes

Sampling volume - 4L/min

Voltage - 100~240V Free Voltage 50/60Hz

Temperature - 10℃~40℃

Size - 245(W) x 380(D) x 155(H)mm

Weight - About 6kg

Output Method - RS232


Spec ▶ KS200-5G(B)

Please refer to the KS200-5G

Power - Rechargeable 12V Li-ion Battery

Charging Method - 12V Adapter

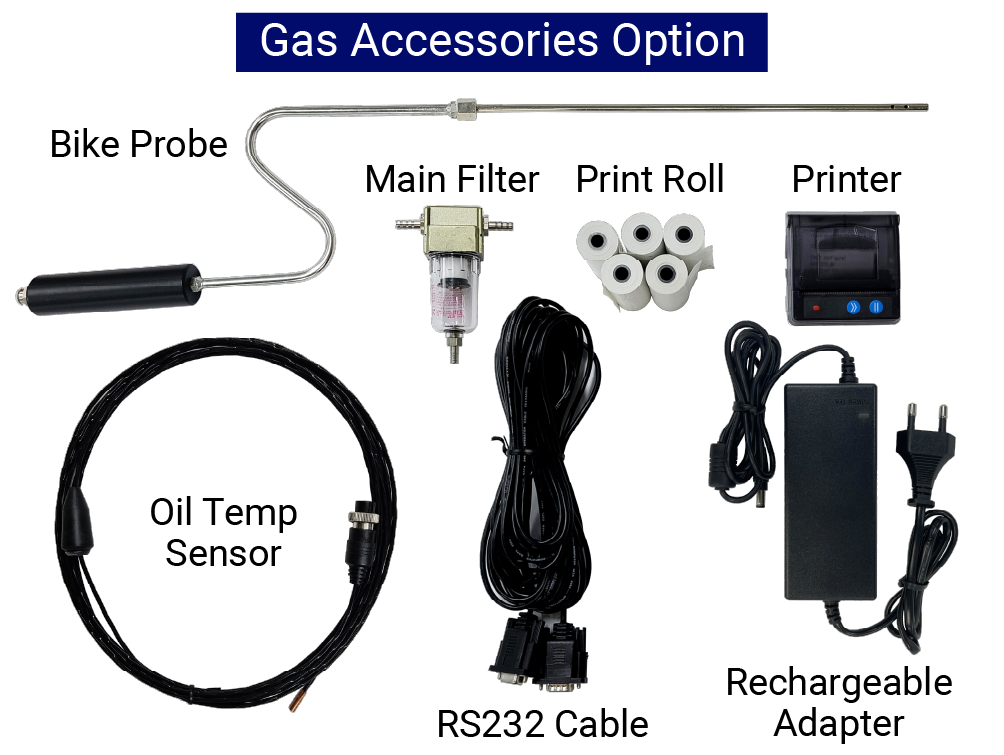

Option

  • Built in Printer
  • HC 0~15,000ppm Range
  • CO Correction Function
  • RPM, Oil Temp Input
